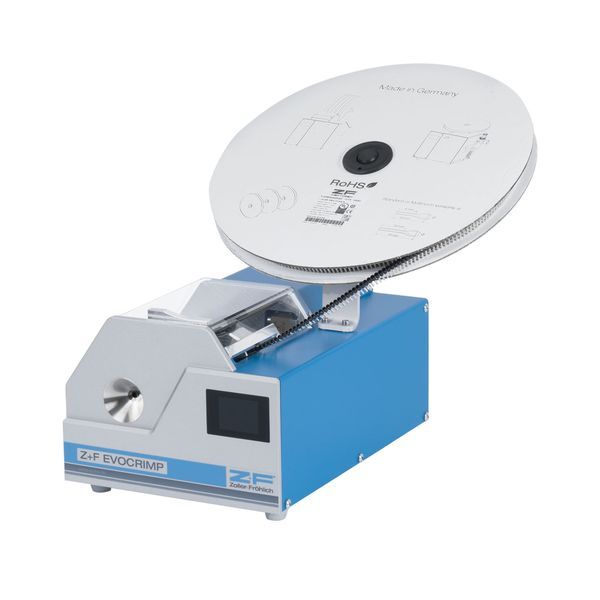

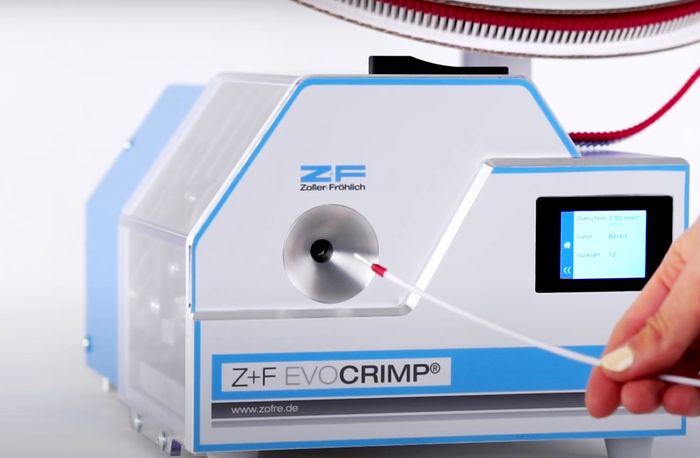

The Z+F EVOCRIMP is an electric stripper-crimper for insulated ferrules. This machine allows the universal and reliable processing of Z+F ferrules from 0.5 up to 2.5 mm² (AWG 20 – 14).

The compact and reliable design fits into the EVO-Line.

Key Features

• Electropneumatically driven stripper-crimper
• Processing of Z+F ferrules
• For ferrules with cross-sections from 0.5 up to 2.5mm2 (AWG 20 – 14)
• Crimping length of 8 mm
• Cycle time of 1.5 s
• The blade change is very easy
