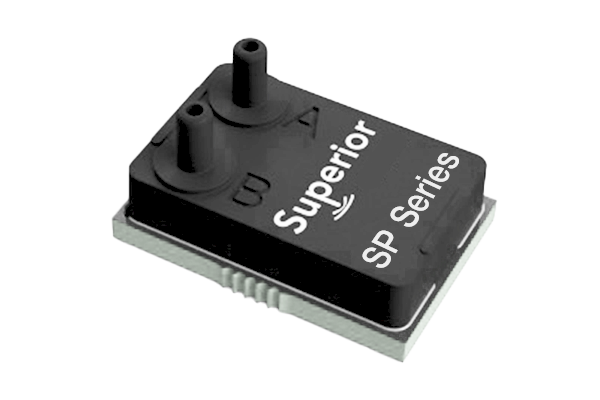

Superior’s SP Series low pressure sensor module family employs NimbleSense™, a proprietary architecture achieving very high dynamic range to create the industry’s highest performing Spirometry pressure sensing device.   This wider dynamic range is ideally suited to offer precise near-zero measurements to support the demanding functional requirements of the Spirometry market. Selectable multiple pressure ranges are now supported in a single package. The SP110/SP210 can be user-programmed to ±250, 500, 1k, and 2.5k Pa full scale ranges while the SP160 is programmable to ±5, 10, 20, and 40 kPa ranges.

The SP Series family provides a new level of sensor integration into the Spirometry market combining an advanced piezoresistive sensing element with integrated amplification, ADC, DSP and processor intelligence to greatly simplify customer integration efforts.  The
The SP Series leverages floating point technology to provide a highly precise digital output. This precision, when combined with the enhanced zero point and the industry’s best positional immunity, enables the ultimate in Spirometry system sensing performance. The SP Series optimizes performance, reliability, and system cost for the challenging Spirometry market.

Industry-leading accuracy performance—The SP Series measures dry air and non-aggressive gas pressure with very high accuracy, better than 0.10% FS. The total Error Band is also industry-leading, typically better than 0.15% FSS.
