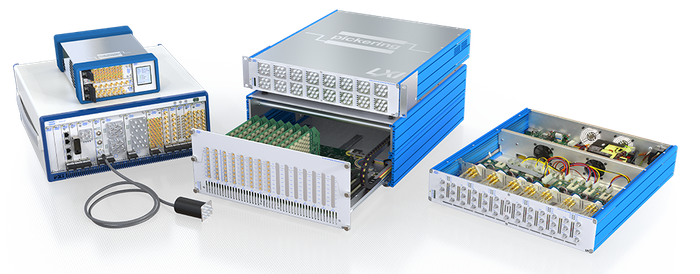

Standard/COTS PXI, LXI & USB Switching with bandwidths from 100 MHz to 110 GHz

• PXI RF & Microwave switch modules that cover the frequency spectrum, including SPDT, transfer, MUX and matrix switching.
• These modules can be used in our PXI or PXIe hybrid chassis or our  LXI/USB chassis, allowing remote control over USB or a gigabit Ethernet connection.
• LXI standard solutions - ethernet-controlled rack-mountable signal routing solutions.
• An example is our LXI RF & Microwave Multiplexers, offering the highest density configuration possible, packaging up to 16 multiplexers onto a 2U high rack.

Flexible RFIU Switch Platforms

These flexible, configurable PXI and LXI microwave switch solutions may be specified with a mix of high-performance microwave relays up to 110 GHz bandwidth at 50Ω impedance or up to 2.5 GHz at 75Ω impedance and a range of connector types.

• Available relays include Transfer, SPDT, SP4T, SP6T, SP8T, SP10T and SP12T in unterminated and terminated versions
• Flexibility in front-panel relay positioning helps minimize external interconnecting cable lengths
• LED indication of energized switch paths
• Our model 60-890-001 is an example of mixed configuration microwave switch that was created for a customer and has now become a standard product

Try our free online microwave switch design tool to configure your RF & microwave switching.

Turnkey RFIU Switch & Signal Routing Subsystems

With our turnkey LXI microwave switch subsystems, we have the expertise and ability to turn your high-level requirements for a microwave switching subsystem into the fully integrated solution you need.

• You provide us with your unique configuration and specification
• Our engineers will work closely with you to provide a well-defined, fully integrated and supportable end product to satisfy your microwave testing needs.
• You'll get a fully documented end product to ensure performance repeatability in subsequent builds/orders — whether it be two months or five years from now.
