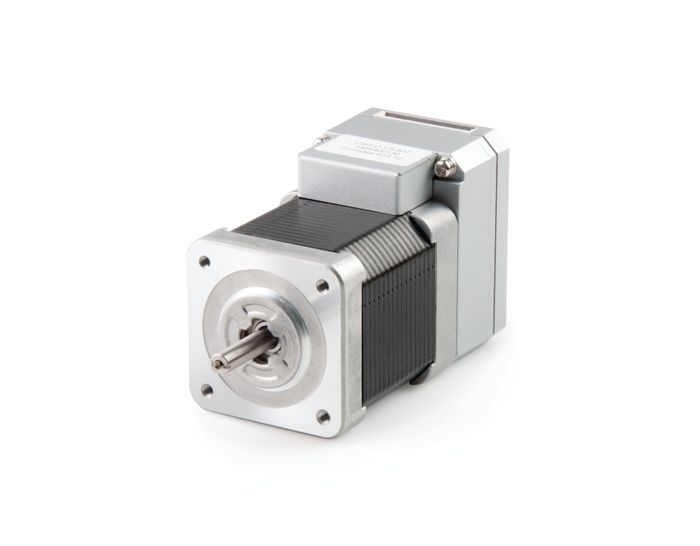

Compared with an equivalent size of stepper motor Cool Muscle works faster, with more available torque, it is more efficient and generates less heat.

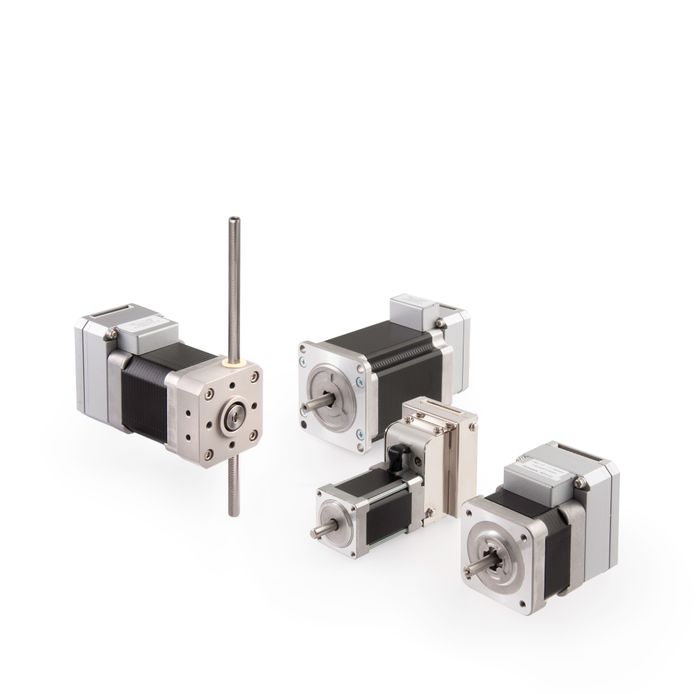

– NEMA sizes 11, 17 and 23 each with two frame lengths

– Encoder resolution of 50,000 counts per revolution

– Speeds from 0 to 3,000 RPM

– Continuous torques from 0.027 to 0.87 Nm (1.24 Nm peak)

– H-infinity controller and vector drive for fully closed loop control of position, speed and torque.

– Fully programmable for standalone operation

– RS232 and USB communications as standard

– Options for RS485, PROFIBUS and Ethernet

– Digital and analogue input and output

– Safe and efficient 24V DC operation

Closed loop control means no step loss. In an open loop system it is possible for the motor to fail to move the exact number of steps if it is overloaded. Cool Muscle, being a closed loop control system, is able to identify any potential for step loss and to correct it.
