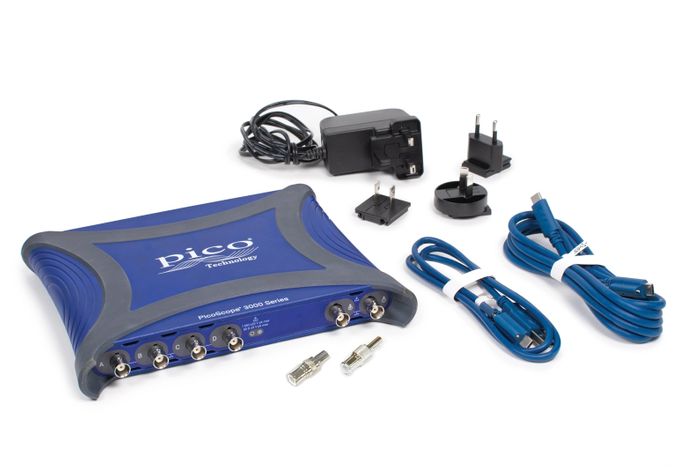

PicoScope 3000E Series 500 MHz 5 GS/s Digital USB Oscilloscope

Pico Technology Stand: J8
  • PicoScope 3000E Series 500 MHz 5 GS/s Digital USB Oscilloscope
  • PicoScope 3000E Series 500 MHz 5 GS/s Digital USB Oscilloscope
  • PicoScope 3000E Series 500 MHz 5 GS/s Digital USB Oscilloscope
PicoScope 3000E Series 500 MHz 5 GS/s Digital USB Oscilloscope PicoScope 3000E Series 500 MHz 5 GS/s Digital USB Oscilloscope PicoScope 3000E Series 500 MHz 5 GS/s Digital USB Oscilloscope

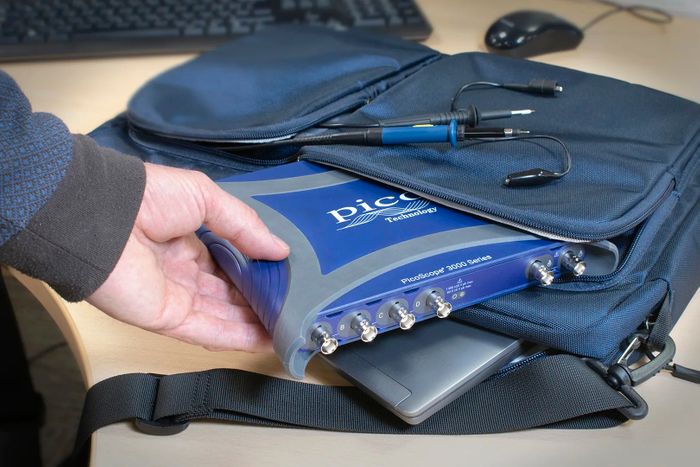

Small, light and portable

Pico is once again redefining PC-based oscilloscopes with up to 500 MHz bandwidth and 5 GS/s in a compact, lightweight and portable USB powered package.  The PicoScope 3000E range are ideal for engineers working on analog, digital, embedded or power electronics, either in the laboratory or on the move.

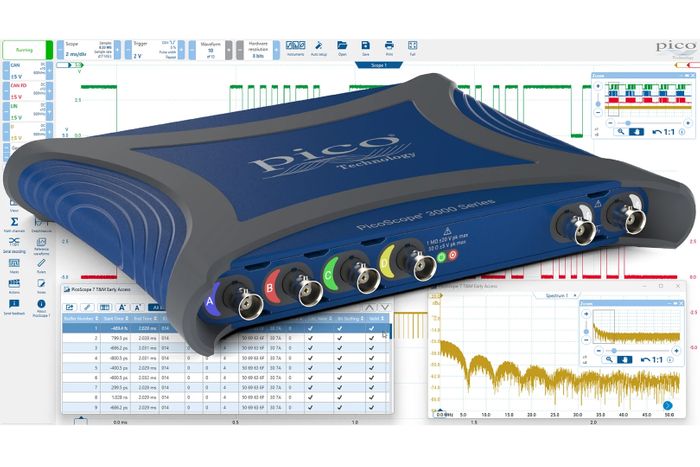

The advanced PicoScope 7 software (Windows, Mac or Linux) is easy to use while offering high-end features including 40 serial decoders, mask limit testing and an array of advanced measurements and maths functions.

A software development kit (SDK) is also available for customers wanting to write their own software or use 3rd party applications such as LabVIEW and MATLAB.



High bandwidth, high sampling rate, deep memory

The 500 MHz bandwidth is matched by a real-time sampling rate of 5 GS/s, enabling a detailed display of high-frequency signal detail.

The PicoScope 3000E Series offers an industry-leading 2 GS of capture memory which can be used to sample at 5 GS/s all the way down to 20 ms/div (200 ms total capture time).  Alternatively, the memory can be split into segments to capture thousands of waveforms in quick succession into the waveform buffer.

A range of powerful tools allow you to make the most of this deep buffer memory. Easy-to-use zoom functions let you zoom and reposition the display by simply dragging with the mouse or touchscreen, mask tests can scan through 1000s of waveforms and DeepMeasureTM can make millions of measurements on a waveform to quickly identify areas to investigate.
