Self-latching push pull connectors with IP protection

The spring-action push-pull connectors from MH Connectors prevent accidental disconnection when handling data, signal and power, and deliver affordable reliability.

Suitable for indoor and outdoor applications, the range offers protection to IP50 or IP68. The metal shell versions provide full EMI and RFI shielding and are rated to handle 5,000 mating cycles over a temperature range of -55 to +200 degrees. The plastic shell versions support over 1,000 mating cycles and operate over a temperature range of -55 to +150 degrees.

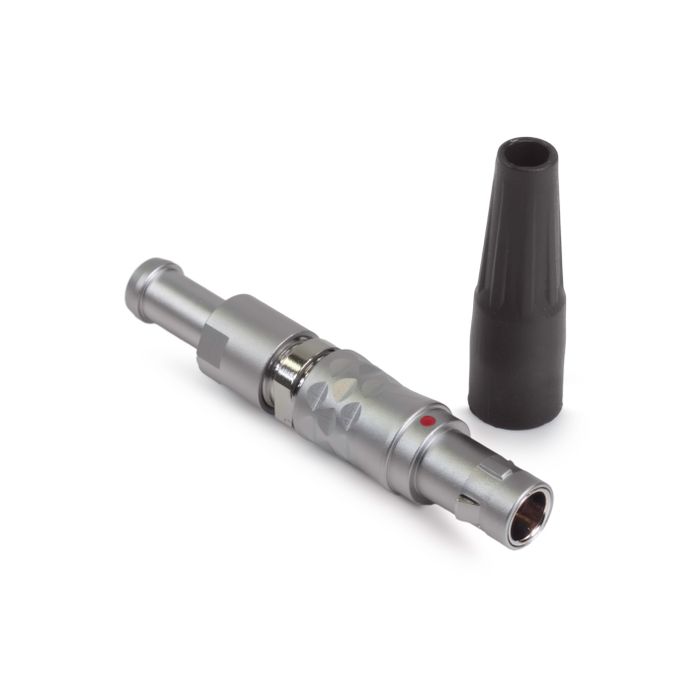

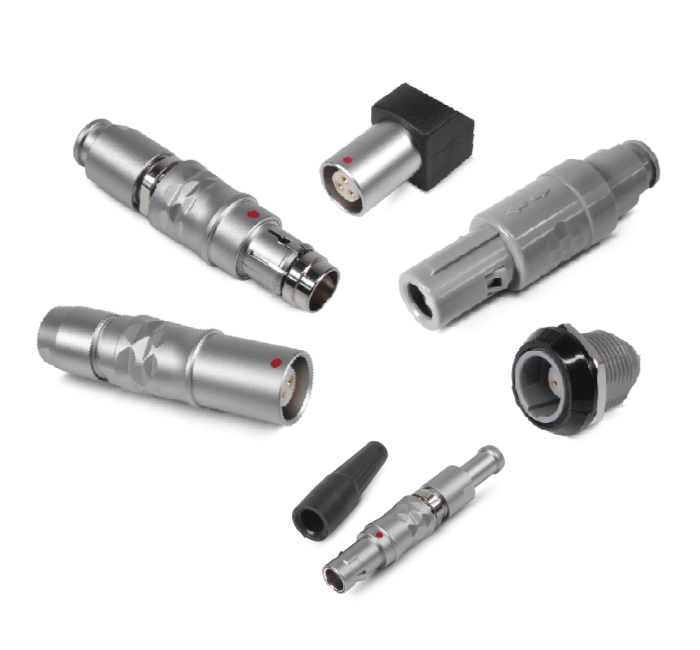

The miniature 00 series, which are IP50 rated, have an ultra-compact 7mm diameter. The best-selling B series metal connectors are in a standard shell format. The plastic P series also has a standard geometry and compatible with existing industry solutions.

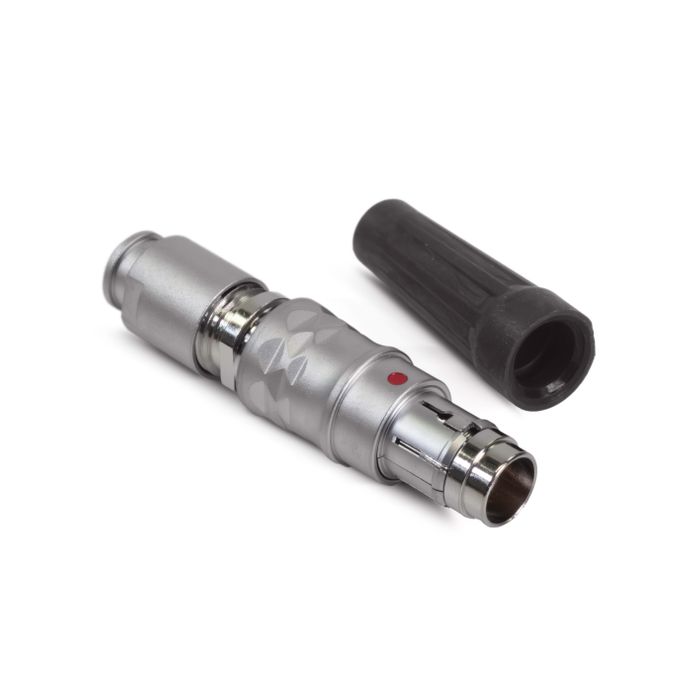

For waterproof connections, the K and T series metal shell connectors offer IP68 sealing. The K series integrate an extra sleeve, and the newer T series is based on a standard geometry.

To deliver rugged reliability, the push-pull connectors withstand vibration to 15 g, from 10 Hz to 2,000 Hz, to support applications in test houses, as well as shock resistance of 100 g for 6 ms.

The option of cable or panel-mount connectors offers flexibility, in addition to gold-plated solder cup contacts which increase the efficient soldering of wires. Orders automatically include a strain relief boot where configured, and the range comprises 2 to 34 contacts with a current rating of up to 30A.

Compatible with existing industry solutions, the MH push-pull connectors are on a short manufacturing lead time of 6-8 weeks, which supports fast prototyping and design.

To request a free sample, please email enquiries@edaceurope.net.

MH Connectors is part of the EDAC group of companies.
