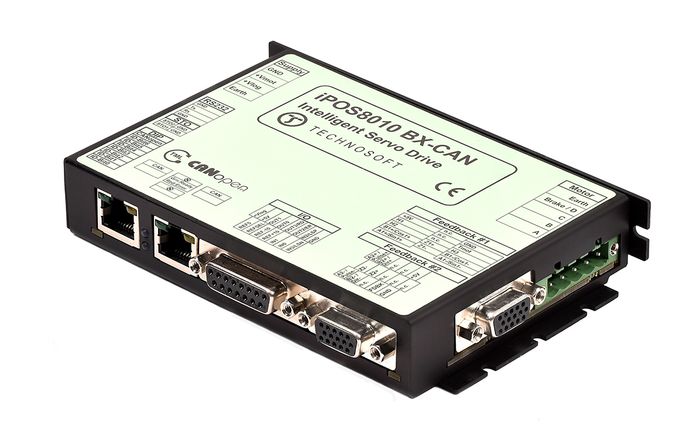

iPOS8010 BX-CAN 11-80V 10A 800W CANopen/TMLCAN
)
- Intelligent, compact and freely programmable motor controller
- For brushless, DC brush and step motors
- Motor supply / logic supply: 11 – 80 VDC / 9 – 36 VDC
- Output current: 10 A continuous; 20 A peak current
- Supports various feedback options including Sin / Cos and absolute encoders
- Communication via RS232, TMLCAN and CANopen interfaces
- STO inputs with safety integrity level SIL3/Cat3/PLe
- Closed-frame design, with retractable connectors
- Size (L x W x H): 139 x 94.2 x 24.5 mm
