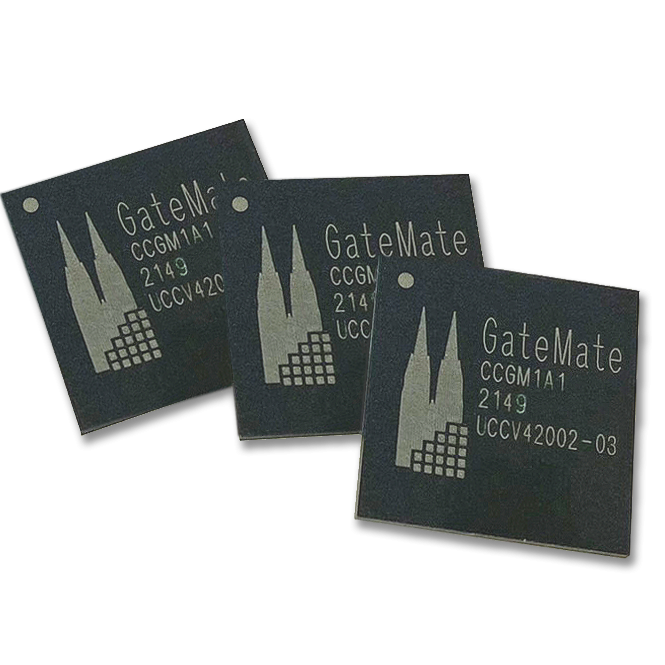

The GateMateTM FPGA family of Cologne Chip AG addresses all application requirements of small to medium-sized FPGAs. Logic capacity, power consumption, package size, and PCB compatibility are best in class. Additionally, GateMateTM FPGAs combine these features with the lowest cost in the industry, making the devices well-suited for applications ranging from university projects to high-volume production. As a result of the outstanding circuit size/cost ratio, new applications can now leverage the benefits of FPGAs.

This is all based on a novel FPGA architecture, which combines CPE programmable elements with a smart routing engine. Specifically, the CPE architecture allows for the efficient construction of arbitrarily-sized multipliers. Furthermore, memory-aware applications can utilize block RAMs with bit widths of 1 to 80 bits.

General Purpose IOs (GPIOs) voltage levels range from 1.2 to 2.5 volts. Additionally, all GPIOs can be configured as single-ended or LVDS differential pairs. Furthermore, a high-speed SerDes interface is available.

GateMateTM FPGA Features

Novel CPE Architecture

• 20,480 programmable elements (CPE) for combinatorial and sequential logic
• 40,960 Latches / Flip-Flops within programmable elements
• CPE consists of LUT-tree with 8 inputs
• Each CPE configurable as 2-bit full-adder or 2x2-bit multiplier

Low Power Consumption

• GlobalfoundriesTM 28 nm SLP (Super Low Power) process
• 3 operation modes: low power, economy, speed
• No excessive start-up currents
• Only two supply voltages needed, can be applied in any order

Features

• 4 programmable PLLs
• Fast configuration with quad SPI interface up to 100 MHz
• Multi-Chip configuration
• 1,280 Kbit dual ported block RAM with variable data widths in 32 x 40 Kbit RAM cells
• Multipliers with arbitrary size implementable in CPE array
• Multiple clocking schemas
• All 162 GPIOs configurable as single-ended or LVDS differential pairs
• Double data rate (DDR) support in all GPIO cells
• 5 Gb/s SerDes

Package

• 324-ball BGA package (15x15 mm)
• Only 2 signal layers required on PCB
