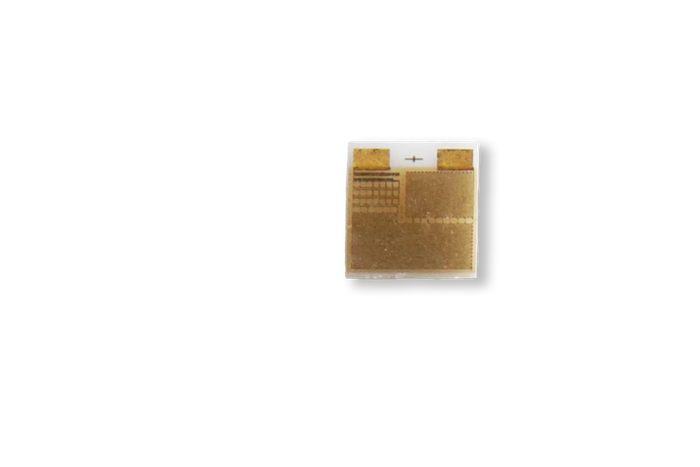

BondSens Pt1000 class F0.3
)
- Product Name: P1K0.0707.3FC.B.T.S
- Nominal resistance: 1000 Ω at 0 °C
- Operating temperature range: -50 °C to +150 °C
- TCR: Pt 3850 ppm/K
- Chip size/dimensions: 0.75 x 0.75 x 0.3 mm
- Tolerance/class: IEC 60751 F0.3 (IST AG tolerance class B)
- Connection type: Bondable pads (Au)
- Packaging: Chip tray, sensor-side up
- Product code: 104316
